Short Description
Applying the Regional Climate Model (RCM) COSMO-CLM (CCLM) different new Global Climate Model (GCM) simulations, performed within CMIP5, are downscaled for Africa which is the first target region of CORDEX (Coordinated Regional Downscaling Experiment). For the climate projections two new scenarios are applied, RCP4.5, and RCP8.8 (RCP: Representative Concentration Pathway)
The Coordinated Regional Downscaling Experiment (CORDEX)
One aim of CORDEX is to produce in a co-ordinated manner multi-model ensembles of regional climate projections for various regions of the world. For the regional projections new global model simulations carried out within CMIP5 will be downscaled. Results of the regional downscaling shall serve • for use in impact and adaptions studies, and • as input for the IPCC 5. Assessment Report Africa chosen as key target region due to its vulnerability to climate change since only few high-resolution climate simulations are available.
Contribution of IMK-TRO to CORDEX
Within the CLM-Community IMK-TRO has taken the scientific responsibility for the CORDEX Africa simulations using CCLM. This is done in close cooperation with other member institutions of the CLM-Community, namely the
• BTU, Cottbus, Chair Environmental Meteorology
• HZG, Geesthacht,Institute for Coastal Research
• ETH, Zurich, Institute for Atmospheric and Climate Science
CORDEX Africa Simulations using CCLM
The CORDEX Africa Simulations using CCLM consist of two parts
1. The evaluation of CCLM for the period 1989 until 2008 using ERA-Interim data as forcing data. The simulations have been carried out with the CORDEX standard grid-spacing of 0.44°, and, in addition, with the higher resolution of 0.22°. These simulations have been performed partly by PIK, Potsdam, and partly by IMK-TRO, where IMK-TRO used the computing facilities at HLRS, Stuttgart. The evaluation simulations are finished, and the results are already used for several publications.
2. The downscaling of the results of four different GCMs for the historical period 1950 until 2005 and the future period 2006 until 2100. For the projections from 2006 till 2100 two emission scenarios have been used, RCP4.5, and RCP8.5. The GCMs whose data have been used for the downscaling are MPI-ESM-LR, HadGEM2-ES, CNRM-CM5, and EC-EARTH. The simulations have been carried out with the CORDEX standard grid-spacing of 0.44°. Thus, taking into account four driving GCMs and two scenarios, an eight member ensemble of climate projections for Africa has been created. In addition, a simulation with a spatial resolution of 0.22° has been carried out for the historical period 1950-2005 using MPI-ESM-LR. All downscaling experiments have been performed at DKRZ, Hamburg, using their modelling environment IMDI (Integrating Model and Data Infrastructure). The simulations have been carried out in a domain that comprises the official CORDEX Africa evaluation domain (Fig. 1).
Fig 1:
The CORDEX Africa evaluation domain. Shown is the orography (m). The boxes indicate 10 further evaluation sub-regions
Results of Evaluation Simulation
The ERA-Interim driven evaluation simulations for the period 1989 till 2008 showed that CCLM is able to reproduce the basic features of the African climate. As an example, this is demonstrated in Fig. 2. It shows the mean daily sums of precipitation for January-February-March (JFM) and July-August-September (JAS) as calculated by the CCLM simulation using the higher resolution of 0.22°. The results of the 0.44° simulation look quite similar. In addition to the model results show the precipitation distribution of ERA-Interim (ERAINT) and five different observational datasets. Please, note that different datasets spawn different periods.

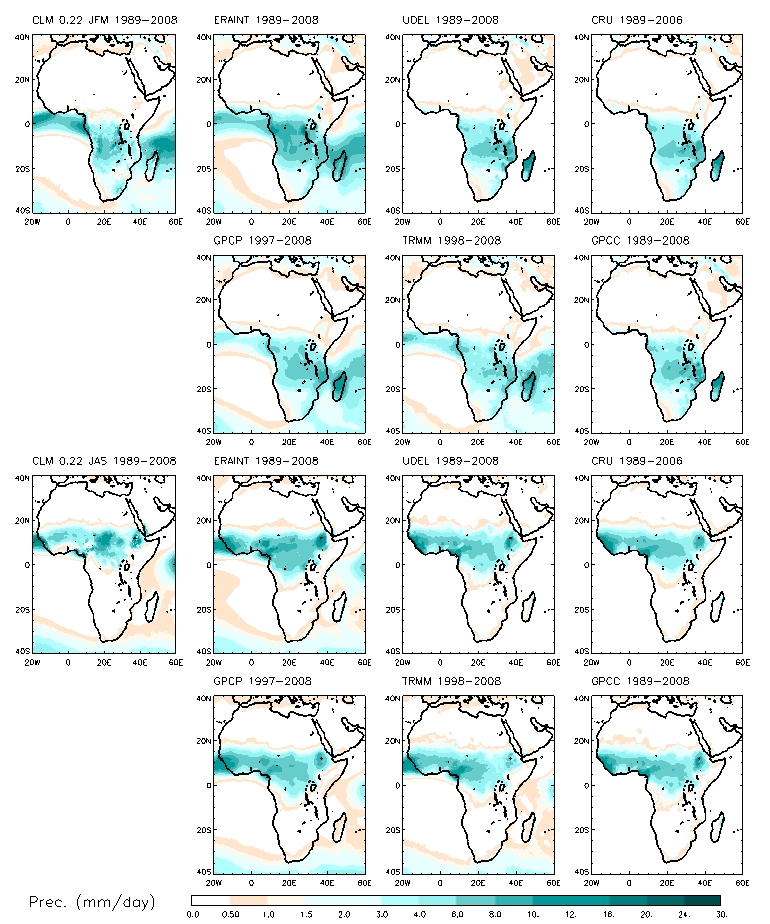

Fig. 2: Seasonal means of daily total precipitation (mm) (JFM and JAS) compared against different datasets (ERAINT, UDEL, CRU, GPCP, TRMM, GPCC); note different dataset spawn different periods of time
Another example(Fig 3.) shows the 50-day low-pass filtered annual cycle of daily precipitation calculated by five different RCMs for the West Africa/Sahel region (WA_S, Fig. 1). All models used ERA-Interim as driving data. The model results are compared with the satellite derived TRMM-3B42 daily precipitation data, which are available since 1998. In addition, the annual cycle of daily precipitation of the ERA-Interim reanalysis is shown. The COSMO-CLM result is denoted as IES-CCLM. Although all models more or less capture the bi-modal structure of the annual precipitation cycle, their results depict quantitative deficits and they vary strongly around the satellite derived observations and the ERA-Interim precipitation.
Fig.3:
Annual cycles of daily precipitation for West Africa/Southern Sahelian calculated by five different RCMs, all driven by ERA-Interim r (ERAINT). In addition, satellite derived climatological observations (TRMM-3B42) and ERA-Interim precipitation data are included (from Nikulin et al. (2012))
Results of Climate Projections
Average climate change signals for the nearer future (2031-2060) and the end of the 21st century (2071-2099) have been calculated for the whole African continent, including Madagascar, and 10 African sub-regions (see Fig. 1). The reference period is the 30-years period 1971-2000. Although all simulations are consistent with respect to the sign of the change, an increase of temperature and a decrease of precipitation, the spread of the results is rather large, especially for precipitation (Fig. 4 and Fig. 5). With respect to the nearer future (Fig. 4) the HadGEM2-ES driven runs show the largest increase of temperature, but the smallest precipitation change. The changes resulting from the downscaling of EC-EARTH and ECHAM6 are rather close together, and they show the largest decrease in precipitation. For CNRM-CM the temperature change is the lowest with less than 1.5 K for RCP4.5 and less than 2 K for RCP8.5. On the average the conditions in the nearer future becomes wetter by about 6%, and warmer by about 1.7K and 2.2K for RCP4.5 and RCP8.5, respectively (Fig. 5 and Table1)
At the end of the century the mean African climate might become warmer, up to about 4.7Kfor the RCP8.5, and still drier (Fig. 5 and Table1). Again all four CCLM simulations show the same climate trends, but again with varying strength.
The strength of the climate change signals does not only depend on the forcing data but also on the region. The average temperature increase is weakest in the Gulf of Guinea region (WA_S), and strongest over the Ethiopian Highlands (EH) and in northern South-West Africa (SA_WN) (Fig. 6). Considering the whole year the negative average changes of precipitation are weakest in the monsoon areas and strongest in the region of the Atlas Mountains (AM) and the southern African regions (Fig. 7). Looking at the individual ensemble members there is a rather large variability within the results; the CNRM-CM5 driven simulations, for example, lead to an annual increase of precipitation in the West-African regions (Fig. 7).
Table 1:
Average climate change signals (means over the CCLM CORDEX Africa ensemble) for the nearer future (2031-2060) and the end of the 21st century (2071-2099) for the whole African continent, including Madagascar. The reference period is 1971-2000.The future period ends in 2099 since the HadGEM2-ES model did not provide forcing data for 2100
Related Publications
Panitz, H.-J., P. Berg, G. Schädler, and G. Fosser (2012): Modelling Near Future Regional Climate Change for Germany and Africa. In: High Performance Computing in Science and Engineering '11 [W. E. Nagel, D. Kröner, M. Resch (Eds.)]. DOI 10.1007/978-3-642-23869-7, Springer Berlin Heidelberg New York 2012
Kalognomou,E.-A., C. Lennard, M. Shongwe, I. Pinto, M. Kent, B. Hewiston, A. Dosio, G. Nikulin, H.-J. Panitz, M. Buechner (2012): A diagnostic evaluation of precipitation in CORDEX models over southern Africa. submitted to J. Clim.
SeidEndris, H., Ph. Omodi, S. Jain, L. Chang’a, C. Lennard, B. Hewiston, J. Awange, P. Ketiem, A. Dosio, G. Nikulin, H.-J. Panitz, M. Buechner, F. Strodal, L. Tazalika (2012): Assessment of the performance of CORDEX Regional Climate Models in Simulating Eastern Africa Rainfall. submitted to J. Clim.
Klutse, N.B., M.B. Sylla, A. Sarr, A. Diedhiou, A. Kamga, A. Abdou, B. Lamptey, E.O. Gbobaniyi, K. Owusu, Ch. Lennard, B. Hewiston, A. Dosio, G. Nikulin, H.-J. Panitz, and M. Buechner (2012): Daily characteristics of West African Monsoon rainfall in CORDEX regional climate models. submitted to J. Geophys. Res.
Panitz, H.-J., A. Dosio, M. Buechner, K. Keuler, D. Luethi (2012): COSMO-CLM (CCLM) Climate Simulations Over CORDEX Africa Domain: Analysis of the ERA-Interim Driven Simulations at 0.44 and 0.22 Deg. Resolution. in preparation.
Kothe, S, H.-J. Panitz, B. Ahrens (2012): On the radiation budget in regional climate simulations for Africa. in preparation.
Nikulin, G, C. Jones, P. Samuelsson, F. Giorgi, M.B.Sylla, G.Asrar, M.Buechner, R.Cerezo-Mota, O.B. Christensen, M.Déqué, J. Fernandez, A. Haensler, E. van Meijgaard, and L. Sushama (2012): Precipitation Climatology in An Ensemble of CORDEX-Africa Regional Climate Simulations. J. Clim., doi: 10.1175/JCLI-D-11-00375.1.
Conferences
Schubert-Frisius, M., K. Meier-Fleischer, P. Lenzen, K. Keuler, H.-J: Panitz, M. Buechner, S. Legutke (2012): CORDEX experiments with the RCLM CCLM using the DKRZ modelling environment IMDI. Geophysical Research Abstracts, Vol. 14, EGU2012-5601,EGU General Assembly 2012, Vienna.
